Logic Gates & Circuits

AQA 7517A-levelRevisionSubscription

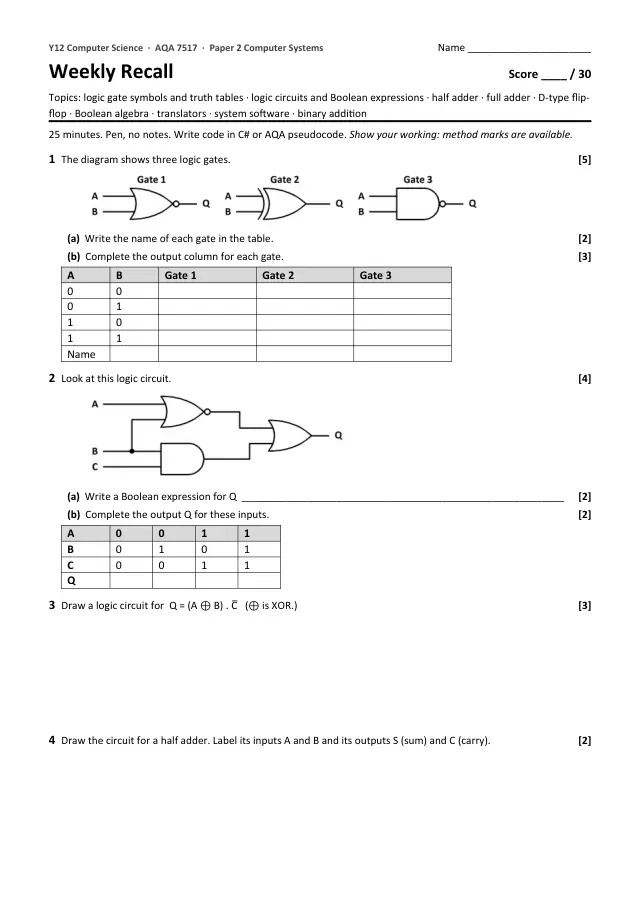

Page 1 of the Logic Gates & Circuits preview
1 of 2 in the preview
Also online

This worksheet marks itself

Set it as homework or classwork and every answer is marked as pupils go, with feedback on what they got wrong. The scores go straight into your mark book, so you can see who needs help before the next lesson.

  • 14 questions
  • 30 marks
  • about 50 minutes
  • marked instantly

Question types: truth table, short answer, multiple choice, matching.

Try it with a class, freeHow it works

About this resource

Construct truth tables for NOT, AND, OR, XOR, NAND and NOR gates; draw and interpret logic-gate circuits; trace half-adder and full-adder circuits; understand the D-type flip-flop as a memory unit.

Lesson outline

  1. Retrieval: Hardware, Software & Translators
  2. Key Vocabulary
  3. Quick Check: Retrieval
  4. Why Logic Gates?
  5. Logic Gates — NOT, AND, OR
  6. The Six Logic Gates
  7. Hinge Question: XOR vs OR
  8. Task: Complete the XOR Truth Table
  9. NAND & NOR — The "Inverse" Gates
  10. Task: Complete the NAND Truth Table
  11. Task: Complete the NOR Truth Table
  12. Worked Example: Circuit → Boolean Expression
