Network Topologies

Eduqas ICT (5539)GCSEWorksheetSubscription

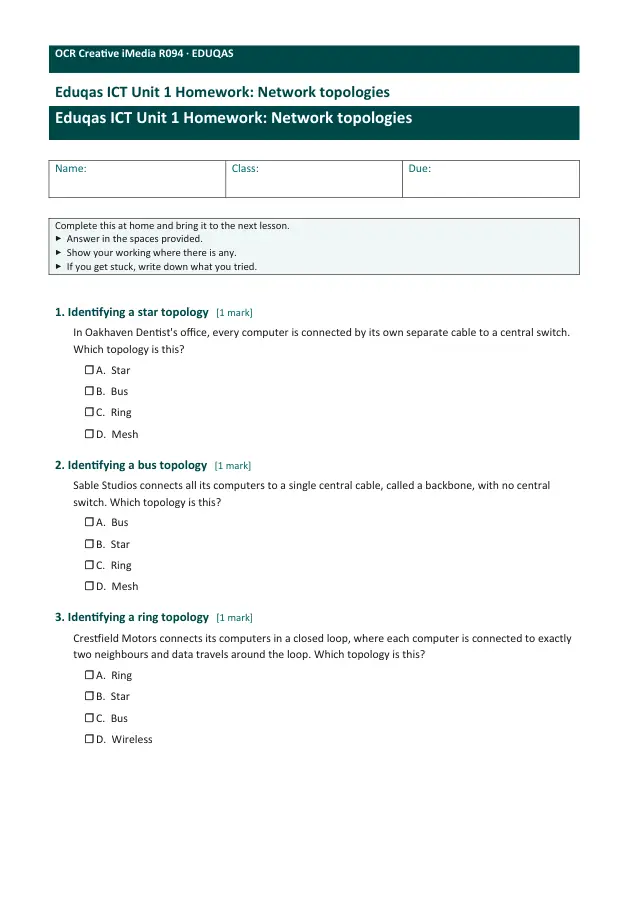

Page 1 of the Network Topologies preview
1 of 3 in the preview
Also online

This worksheet marks itself

Set it as homework or classwork and every answer is marked as pupils go, with feedback on what they got wrong. The scores go straight into your mark book, so you can see who needs help before the next lesson.

  • 8 questions
  • 26 marks
  • about 30 minutes
  • marked instantly

Question types: multiple choice, short answer, fill the gap, true or false, matching.

Try it with a class, freeHow it works

About this resource

Eduqas/WJEC ICT 5539, Unit 1 (1.2.3) — bus, star and ring network topologies, and how to COMPARE them (cost, performance, and what happens when something fails) rather than just identify them from a diagram. Builds on lesson 25's router/switch/NIC/WAP hardware.

Lesson outline

  1. Do Now — Retrieval
  2. Keywords for This Lesson
  3. Star Topology
  4. Quick Check — Star Topology
  5. Bus Topology
  6. Hinge Question — Bus and Cable
  7. Ring Topology
  8. Star's Failure vs Ring's Failure
  9. Comparing the Three Topologies
  10. Hinge Question — Comparing All Three
  11. Main Activity, Part 1 — Plan Your Answer
  12. Main Activity, Part 2 — Write Your Answer
